Get a custom filling solution designed around your product, container, and target throughput.
Paste Filling Machines

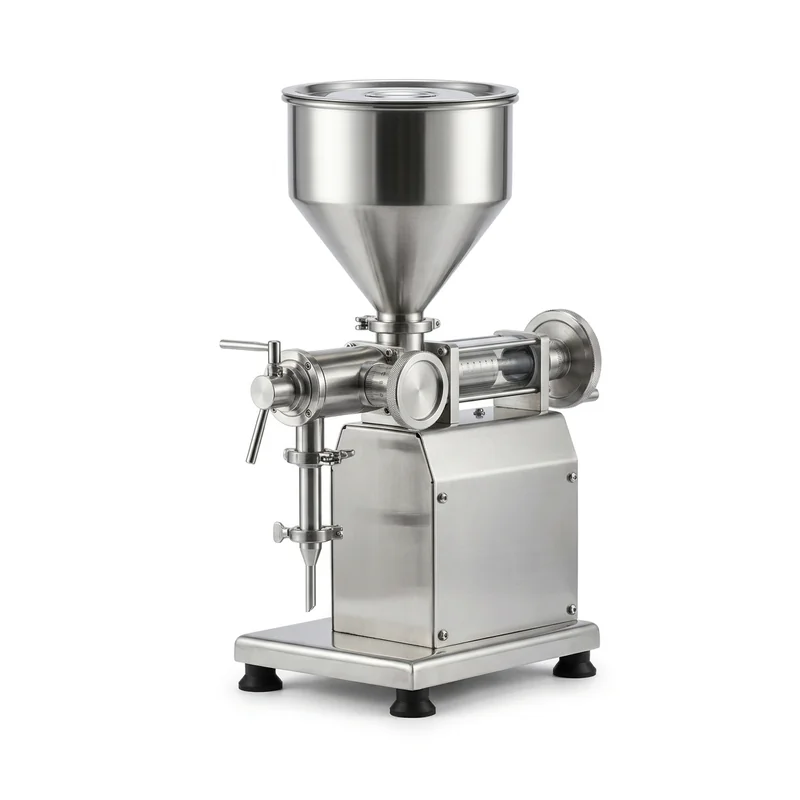

The XQZPG series benchtop paste dosing machine is tailored for artisan cosmetic formulators, compounding pharmacies, pilot laboratories, and small skincare workshops filling small containers from 5 ml up to 100 ml. Weighing only 22 kg, it operates comfortably on standard workbenches. The rotary valve and stainless steel cylinder provide positive displacement dosing for dense face creams, eye gels, lip balms, and herbal salves without leaking or wasting expensive ingredients.
Production Capacity
10-30 bottles/min (<1,000 bottles/day)
Heads / Stations
1
Filling Range
5-100 ml
公模代号 / Public Mold Code: A1-DSK-1H
The XQZPG series benchtop paste dosing machine is tailored for artisan cosmetic formulators, compounding pharmacies, pilot laboratories, and small skincare workshops filling small containers from 5 ml up to 100 ml. Weighing only 22 kg, it operates comfortably on standard workbenches. The rotary valve and stainless steel cylinder provide positive displacement dosing for dense face creams, eye gels, lip balms, and herbal salves without leaking or wasting expensive ingredients.
Primary Metric
10-30 bottles/min (<1,000 bottles/day)
Control Stack
undefined + undefined
Contact Material
316L Stainless Steel
Electrical
undefined
Project CTA
Share your container size, target speed, and product behavior. We will match the right equipment configuration and send a technical response.
No Price Listed
This catalog is quote-driven. Final pricing depends on container format, filling range, control options, and downstream integration scope.
| Frame Material | 304 Stainless Steel |
|---|---|
| Contact Part Material | 316L Stainless Steel |
| Power Supply | Pneumatic (or manual lever) |
| Air Pressure | 0.4-0.6 MPa |
| Production Capacity | 10-30 bottles/min (<1,000 bottles/day) |
| Filling Accuracy | +/-1% |
| Heads / Stations | 1 |
| Filling Range | 5-100 ml |
| Filling Principle | Compact rotary valve piston micro dosing |
| Viscosity Range | 500 – 80,000 cPs |
| Drive Type | Pneumatic benchtop cylinder / manual lever switch |
| Dosing Adjustment | Precision screw stop with engraved millimeter scale |
| Applicable Container | Small jar, sample pot, lip balm tin, vial |
| Power Consumption | 0.05 |
| Dimensions (L x W x H) | 500x300x700 mm |
| Weight | 22 kg |
Key Features
Ultra-compact tabletop footprint fits easily on standard laboratory benches and small workshop tables
Precision micro-piston stroke delivers exact 5–100 ml dosing for eye creams, face balms, and ointments
10L conical polished stainless steel hopper with steep angle prevents paste wall hang-up
Quick-release clamps enable full sanitation teardown in under 3 minutes
Industrial automation platform for repeatable cycle control; brand selectable per project.
Clean actuation and serviceable pneumatic components; brand selectable per project.
Suitable for food, cosmetic, and chemical product contact areas.
Documentation and safety configuration prepared for export projects.
Application limits
Conical cut-off nozzle with spring-loaded drip barrier
Related Products
公模代号 PST-HOT-2H
A two-head paste filler with a heated hopper and heated nozzles for products that are thick or solid at room temperature — honey that crystallizes, peanut butter, wax, chili paste.
Production Capacity
1,000-2,200 BPH
Heads / Stations
2
Filling Range
100-2,000 ml
公模代号 PST-SRV-2H
A two-head servo paste filler for dense food and cosmetic products that need tighter volumetric control in a small footprint — jam, cream cheese, face cream, gel.
Production Capacity
1,200-2,400 BPH
Heads / Stations
2
Filling Range
50-1,500 ml

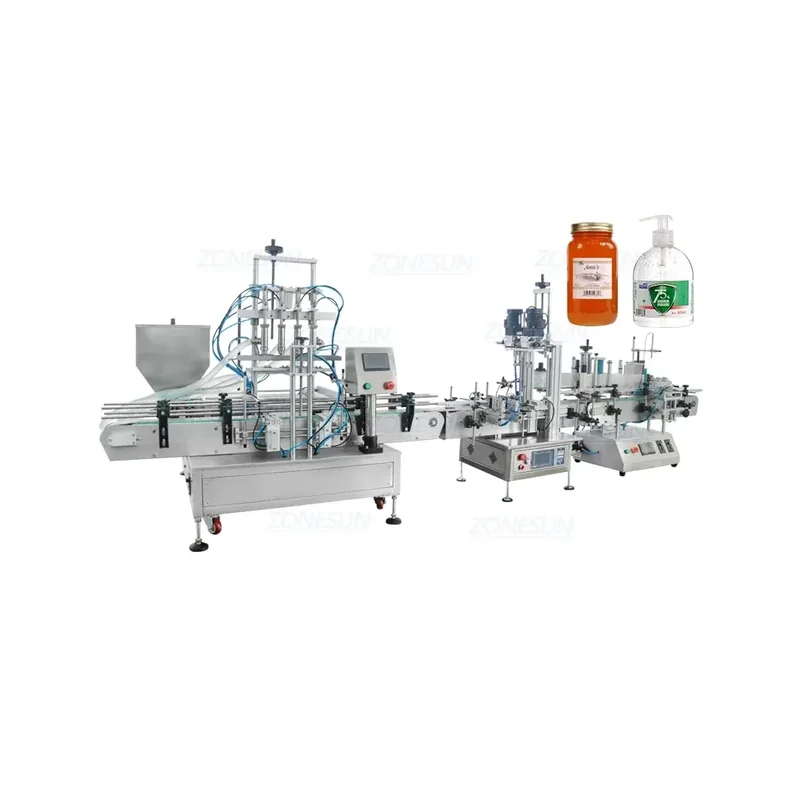

公模代号 PST-VAC-4H
